Electrical Cabinet Corrosion Protection

ProtectorventTM provides protection when it really matters by reducing harmful corrosion in important control cabinets.

ProtectorVent for Corrosion Protection

It is impossible to seal Control or IT data cabinets 100% against corrosion by simply closing the door. Additionally, any heat build-up inside the cabinets requires venting. Protectorvent TM overcomes these problems by positively pressurising the cabinet and removing the gaseous contamination before it enters the cabinet, plus for larger units offers ambient air cooling to the cabinet.

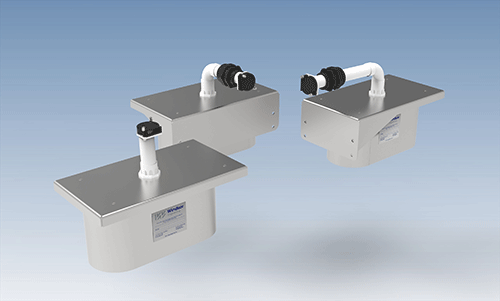

Protectorvent – PV5 small cabinet pressure series

Applications

  • Air flow up to 5 m3/hr scrubbing & positive pressure
  • Outdoor switchyard controls

  • MCC cabinets in geothermal areas
  • Outdoor cabinets in P&P mills

  • Swimming pool controls
  • Waste water and water treatment plan control cabinets

  • Dairy co milk reception control panels

Special Features

  • IP67 rated

  • Corrosion resistant stainless steel construction
  • Variable volume control in larger units

  • Servicing media is quick and simple
  • Range of configurations to suit any need

  • Long life thanks to Purafil large media volume

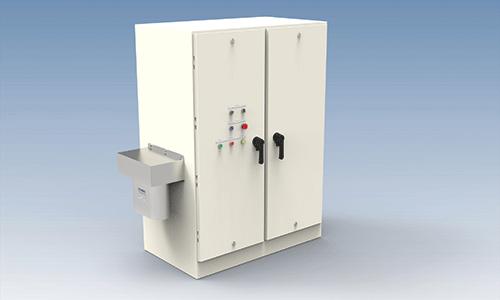

ProtectorVent – PV120 large cabinet series

Applications

  • Air flow up to 120m3/hr combined scrubbing & vent/ cooling air-configurable

  • Outdoor switchyard controls
  • MCC cabinets in geothermal areas

  • Outdoor cabinets in pulp & paper mills
  • Swimming pool controls

  • Waste water and water treatment plan control cabinets
  • Dairy co milk reception control panels

Special Features

  • IP67 rated

  • Corrosion resistant stainless steel construction
  • Variable volume control in larger units

  • Servicing media is quick and simple
  • Range of configurations to suit any need

  • Long life thanks to Purafil gas-phase media

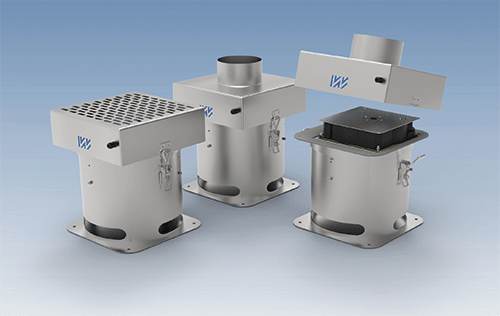

ProtectorVent – PV120 floor mount series

Applications

  • Air flow up to 120m3/hr combined scrubbing & vent/ cooling air

  • IT and data rooms
  • Waste water treatment and water treatment plant control cabinets

  • Pulp and paper plant MCC room cabinets
  • Isolated cabinets in generator halls in geothermal power stations

  • Compressor intakes

Special Features

  • Corrosion resistant stainless-steel construction

  • Variable volume control in pressurizing & recirculating units
  • Servicing media is quick and simple

  • Range of configurations to suit any need
  • Long life thanks to Purafil gas-phase media
